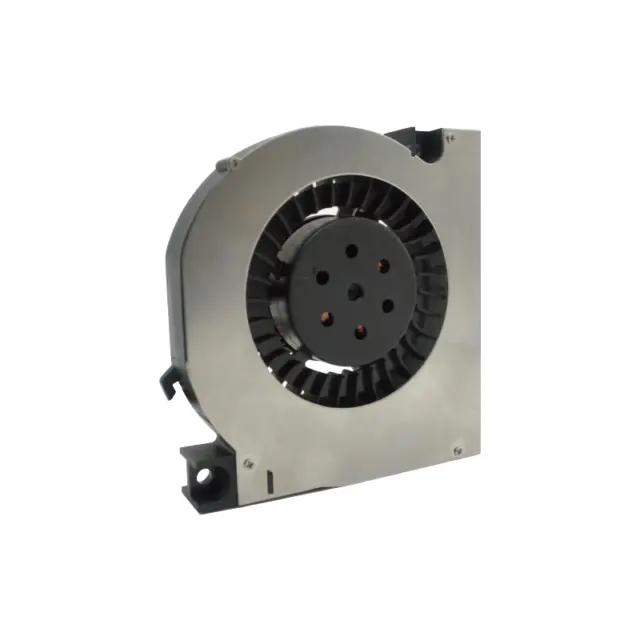

12032 120x120x32mm (Model D) dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan
DC Brushless blower
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB1232L12 | 12 | 7.0～13.8 | 0.5 | 2200 | 0.81 | 28.7 | 13 | 0.51 | 45.3 |
| HB1232M12 | 12 | 7.0～13.8 | 0.8 | 2600 | 0.92 | 32.5 | 20.6 | 0.81 | 49.8 |
| HB1232H12 | 12 | 7.0～13.8 | 1.2 | 3000 | 1.1 | 38.7 | 28.9 | 1.14 | 54.3 |
| HB1232U12 | 12 | 7.0～13.8 | 2 | 3600 | 1.39 | 49.1 | 52.1 | 2.05 | 56.8 |
| HB1232L24 | 24 | 14.0～27.6 | 0.3 | 2200 | 0.81 | 28.7 | 13 | 0.51 | 45.3 |
| HB1232M24 | 24 | 14.0～27.6 | 0.4 | 2600 | 0.92 | 32.5 | 20.6 | 0.81 | 49.8 |
| HB1232H24 | 24 | 14.0～27.6 | 0.6 | 3000 | 1.1 | 38.7 | 28.9 | 1.14 | 54.3 |
| HB1232U24 | 24 | 14.0～27.6 | 1 | 3600 | 1.39 | 49.1 | 52.1 | 2.05 | 56.8 |
| HB1232L48 | 48 | 28.0～56.0 | 0.18 | 2200 | 0.81 | 28.7 | 13 | 0.51 | 45.3 |
| HB1232M48 | 48 | 28.0～56.0 | 0.23 | 2600 | 0.92 | 32.5 | 20.6 | 0.81 | 49.8 |
| HB1232H48 | 48 | 28.0～56.0 | 0.35 | 3000 | 1.1 | 38.7 | 28.9 | 1.14 | 54.3 |
| HB1232U48 | 48 | 28.0～56.0 | 0.5 | 3600 | 1.39 | 49.1 | 52.1 | 2.05 | 56.8 |
