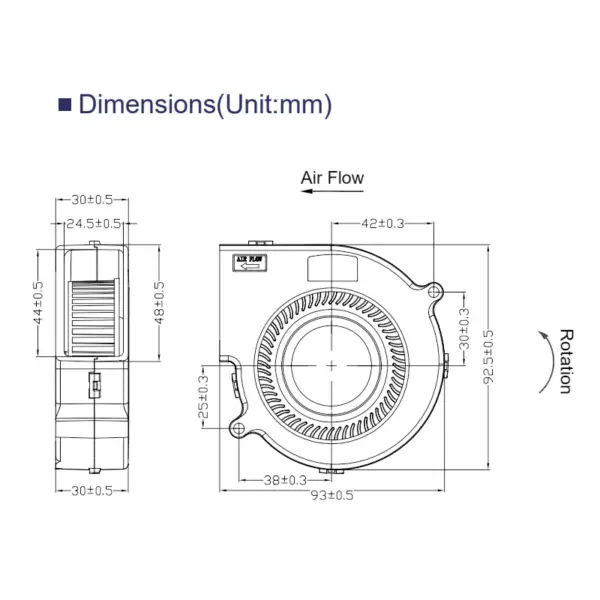

9330 93x92x30mm dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan
DC Brushless blower
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB9330L12 | 12 | 7.0～13.8 | 0.3 | 2200 | 0.38 | 13.4 | 8.4 | 0.33 | 30.5 |
| HB9330M12 | 12 | 7.0～13.8 | 0.5 | 3000 | 0.52 | 18.4 | 17.2 | 0.68 | 40.8 |
| HB9330H12 | 12 | 7.0～13.8 | 0.8 | 3600 | 0.63 | 22.2 | 26.5 | 1.04 | 44.3 |
| HB9330U12 | 12 | 7.0～13.8 | 1.2 | 4200 | 0.72 | 25.6 | 37.3 | 1.47 | 48.6 |
| HB9330L24 | 24 | 14.0～27.6 | 0.18 | 2200 | 0.38 | 13.4 | 8.4 | 0.33 | 30.5 |
| HB9330M24 | 24 | 14.0～27.6 | 0.26 | 3000 | 0.52 | 18.4 | 17.2 | 0.68 | 40.8 |
| HB9330H24 | 24 | 14.0～27.6 | 0.4 | 3600 | 0.63 | 22.2 | 26.5 | 1.04 | 44.3 |
| HB9330U24 | 24 | 14.0～27.6 | 0.6 | 4200 | 0.72 | 25.6 | 37.3 | 1.47 | 48.6 |
| HB9330L48 | 48 | 28.0～56.0 | 0.1 | 2200 | 0.38 | 13.4 | 8.4 | 0.33 | 30.5 |
| HB9330M48 | 48 | 28.0～56.0 | 0.15 | 3000 | 0.52 | 18.4 | 17.2 | 0.68 | 40.8 |
| HB9330H48 | 48 | 28.0～56.0 | 0.23 | 3600 | 0.63 | 22.2 | 26.5 | 1.04 | 44.3 |
| HB9330U48 | 48 | 28.0～56.0 | 0.35 | 4200 | 0.72 | 25.6 | 37.3 | 1.47 | 48.6 |
