RF coaxial connector– Reliable Signal Transmission for RF, Microwave & 5G Applications
Our RF coaxial connector are precision-engineered to provide low-loss, high-reliability connections for RF, microwave, and high-speed digital systems. Designed to maintain consistent characteristic impedance (50Ω or 75Ω), they deliver excellent VSWR, minimal insertion loss, and superior durability even in harsh environments.

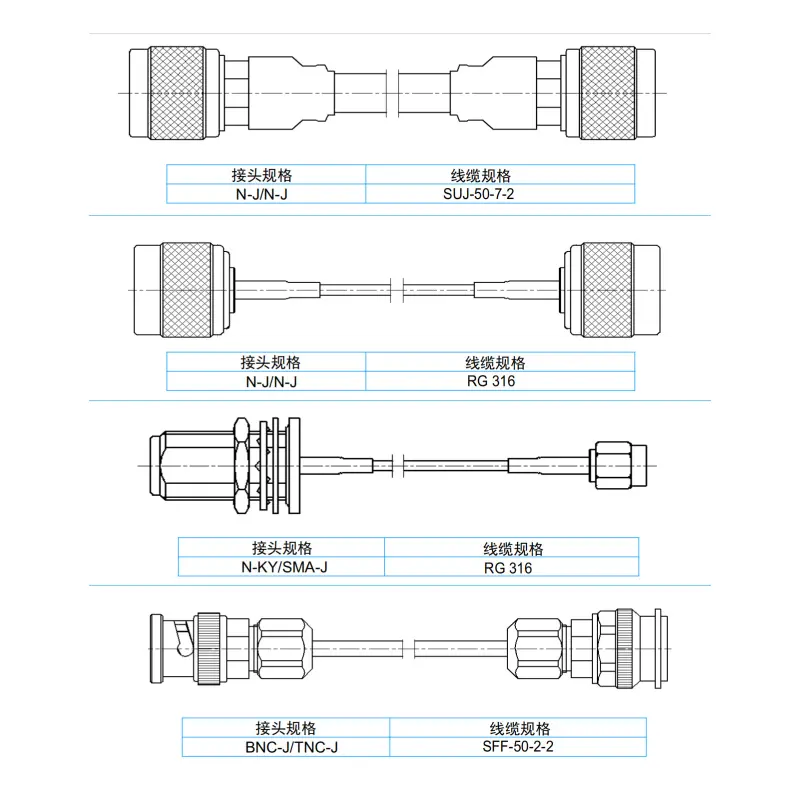

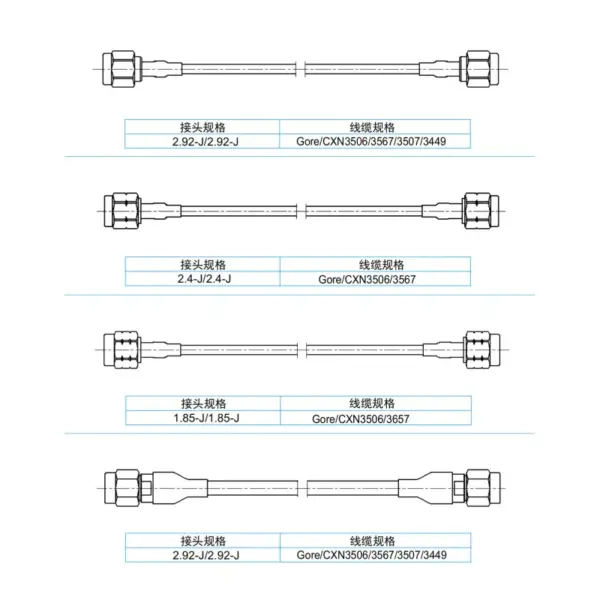

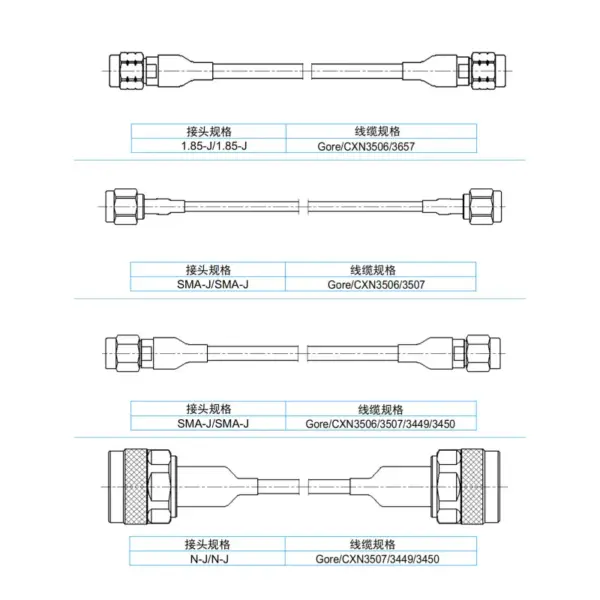

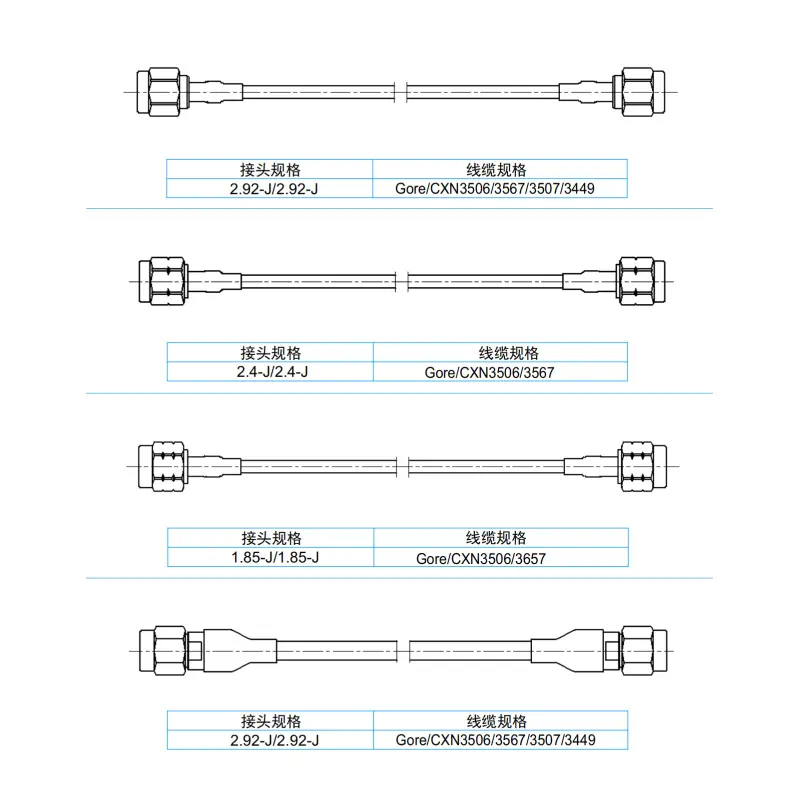

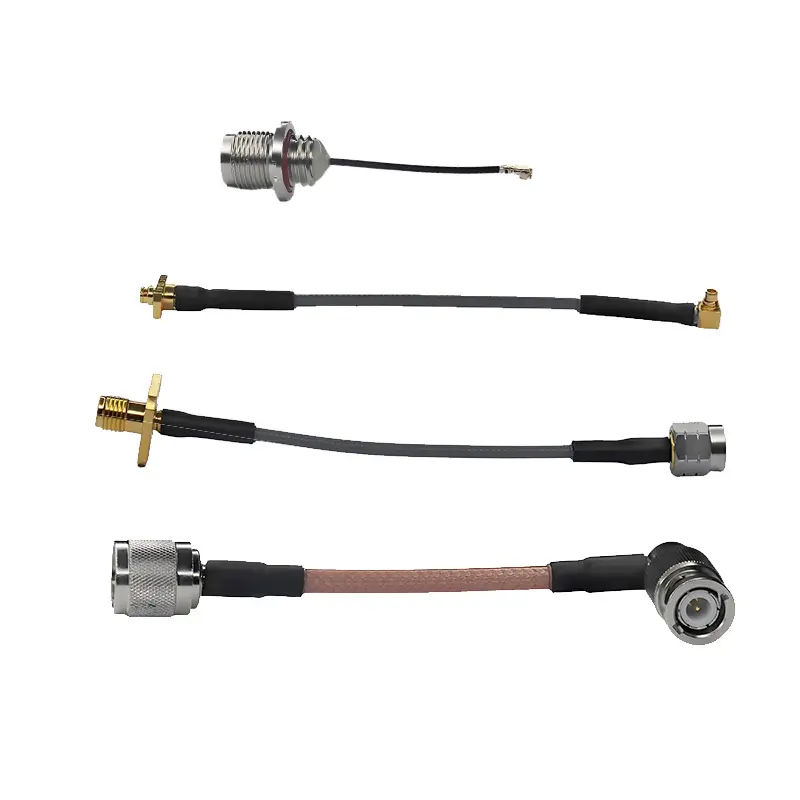

We supply a full range of coaxial connector types, including SMA, BNC, N-Type, TNC, MCX, and MMCX, in straight, right-angle, panel mount, bulkhead, and PCB-mount configurations. Coupling methods include threaded, bayonet, and push-on designs for fast and secure connections.
Impedance: 50Ω / 75Ω
Frequency Range: DC – 18 GHz (model dependent)
Low Insertion Loss and High Return Loss for stable signal transmission
Multiple Interfaces: SMA, BNC, N-Type, TNC, MCX, MMCX
Mounting Options: Straight, Right Angle, Panel Mount, PCB Mount
Materials: Brass, Stainless Steel, Beryllium Copper, Gold or Nickel Plating
Weatherproof: IP67/IP68 for outdoor applications,RF coaxial connector
Durability: 500–2000 mating cycles (model dependent)
Applications
Telecommunication: Base stations, antennas, repeaters
Test & Measurement: Network analyzers, oscilloscopes, spectrum analyzers
Broadcasting & Video: CATV, CCTV, HD-SDI systems
Military & Aerospace: Radar, satellite communication
5G & mmWave Systems: High-frequency wireless transmission
Contact us: [email protected]
