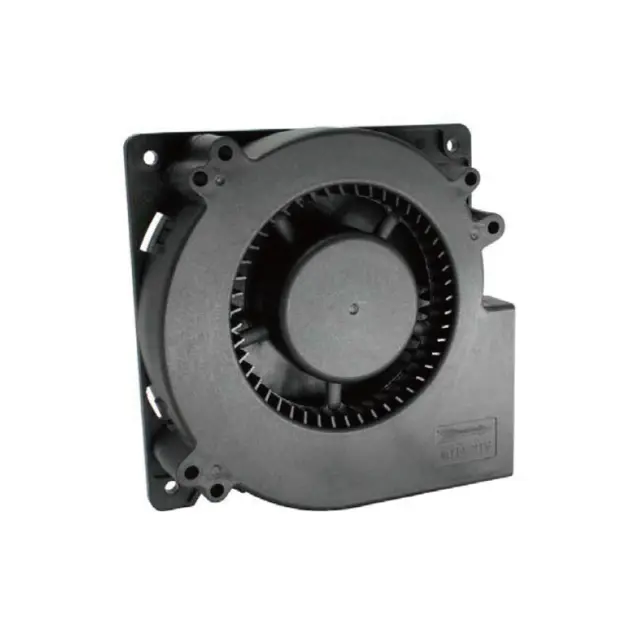

1340 135x144x40mm dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan
DC Brushless blower fans
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB1340L12 | 12 | 7.0～13.8 | 1 | 2000 | 1.07 | 37.8 | 25.8 | 1.02 | 53.2 |
| HB1340M12 | 12 | 7.0～13.8 | 1.4 | 2500 | 1.31 | 46.4 | 41.1 | 1,62 | 55.7 |
| HB1340H12 | 12 | 7.0～13.8 | 2 | 2800 | 1.58 | 55.9 | 60.3 | 2,38 | 58.2 |
| HB1340U12 | 12 | 7.0～13.8 | 4 | 3800 | 2.05 | 72.5 | 103.2 | 4.07 | 65.4 |
| HB1340L24 | 24 | 14.0～27.6 | 0.5 | 2000 | 1.07 | 37.8 | 25.8 | 1.02 | 53.2 |
| HB1340M24 | 24 | 14.0～27.6 | 0.7 | 2500 | 1.31 | 46.4 | 41.1 | 1,62 | 55.7 |
| HB1340H24 | 24 | 14.0～27.6 | 1 | 2800 | 1.58 | 55.9 | 60.3 | 2,38 | 58.2 |
| HB1340U24 | 24 | 14.0～27.6 | 2 | 3800 | 2.05 | 72.5 | 103.2 | 4.07 | 65.4 |
| HB1340L48 | 48 | 28.0～56.0 | 0.3 | 2000 | 1.07 | 37.8 | 25.8 | 1.02 | 53.2 |
| HB1340M48 | 48 | 28.0～56.0 | 0.4 | 2500 | 1.31 | 46.4 | 41.1 | 1,62 | 55.7 |
| HB1340H48 | 48 | 28.0～56.0 | 0.5 | 2800 | 1.58 | 55.9 | 60.3 | 2,38 | 58.2 |
| HB1340U48 | 48 | 28.0～56.0 | 1 | 3800 | 2.05 | 72.5 | 103.2 | 4.07 | 65.4 |
